Mini-Robot PCB

There it is. Features are:
  • carries the SMD version of an AT90S2313, clocked at 10Mhz
  • one RS232 compatible serial port (single 3-pin connector),
  • four connectors for standard servos,
  • inline programming socket,
  • connector with most processor pins
  • of course compatible with the ATtiny2313 (no quartz necessary ...)
[Mini Robot1]

And another picture. What I intend to do is to create a "multi processor" application by coupling some of these boards (maybe via I2C, don't know yet ...).

[Mini Robot2]

No real project as yet. I've got lot's of these b.t.w. :)
Nice for practicing the soldering of SMD's ... soldering the tiny 22pF caps was the worst in the beginning ...

[Mini Robot3]

[schematics]

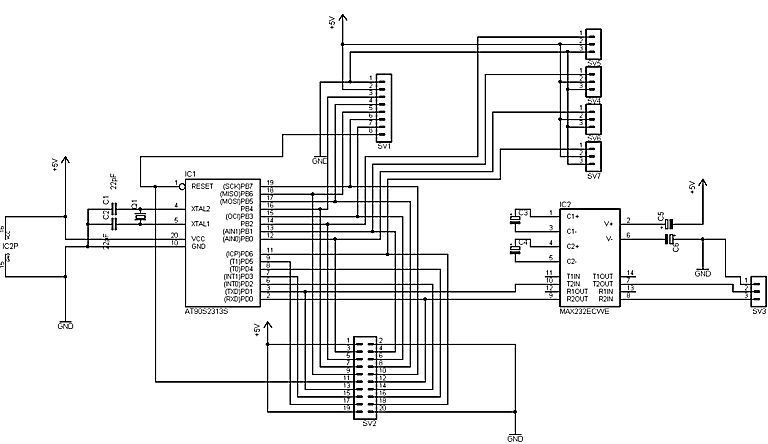

The schematic of the board ...
